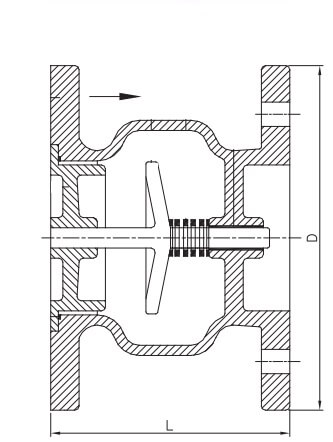

Клапан обратный серии VCXF

DN

Кодировка

Фланец по стандарту DIN

Кодировка

Фланец по стандарту ASME CLASS 150

L

D

50

VCXF−50−CD-PN16

DIN PN16 DN50

VCXF−50−CA-CL150

ASME CLASS 150 DN50

133

152

65

VCXF−65−CD-PN16

DIN PN16 DN65

VCXF−65−CA-CL150

ASME CLASS 150 DN65

140

178

80

VCXF−80−CD-PN16

DIN PN16 DN80

VCXF−80−CA-CL150

ASME CLASS 150 DN80

154

191

100

VCXF−100−CD-PN16

DIN PN16 DN100

VCXF−100−CA-CL150

ASME CLASS 150 DN100

187

229

125

VCXF−125−CD-PN16

DIN PN16 DN125

VCXF−125-CA-CL150

ASME CLASS 150 DN125

216

254

150

VCXF−150−CD-PN16

DIN PN16 DN150

VCXF−150−CA-CL150

ASME CLASS 150 DN150

248

279

200

VCXF−200−CD-PN16

DIN PN16 DN200

VCXF−200−CA-CL150

ASME CLASS 150 DN200

321

343

250

VCXF−250−CD-PN16

DIN PN16 DN250

VCXF−250−CA-CL150

ASME CLASS 150 DN250

399

406

300

VCXF−300−CD-PN16

DIN PN16 DN300

VCXF−300−CA-CL150

ASME CLASS 150 DN300

362

483

350

VCXF−350−CD-PN16

DIN PN16 DN350

VCXF−350−CA-CL150

ASME CLASS 150 DN350

400

535

400

VCXF−400−CD-PN16

DIN PN16 DN400

VCXF−400−CA-CL150

ASME CLASS 150 DN400

448

595

450

VCXF−450−CD-PN16

DIN PN16 DN450

VCXF−450CA-CL150

ASME CLASS 150 DN450

500

635

500

VCXF−500−CD-PN16

DIN PN16 DN500

VCXF−500−CA-CL150

ASME CLASS 150 DN500

523

700

600

VCXF−600−CD-PN16

DIN PN16 DN600

VCXF−600−CA-CL150

ASME CLASS 150 DN600

600

813
